A printed surface can feel dry within seconds, but this does not mean that the ink has reached its final adhesion, hardness or chemical resistance.

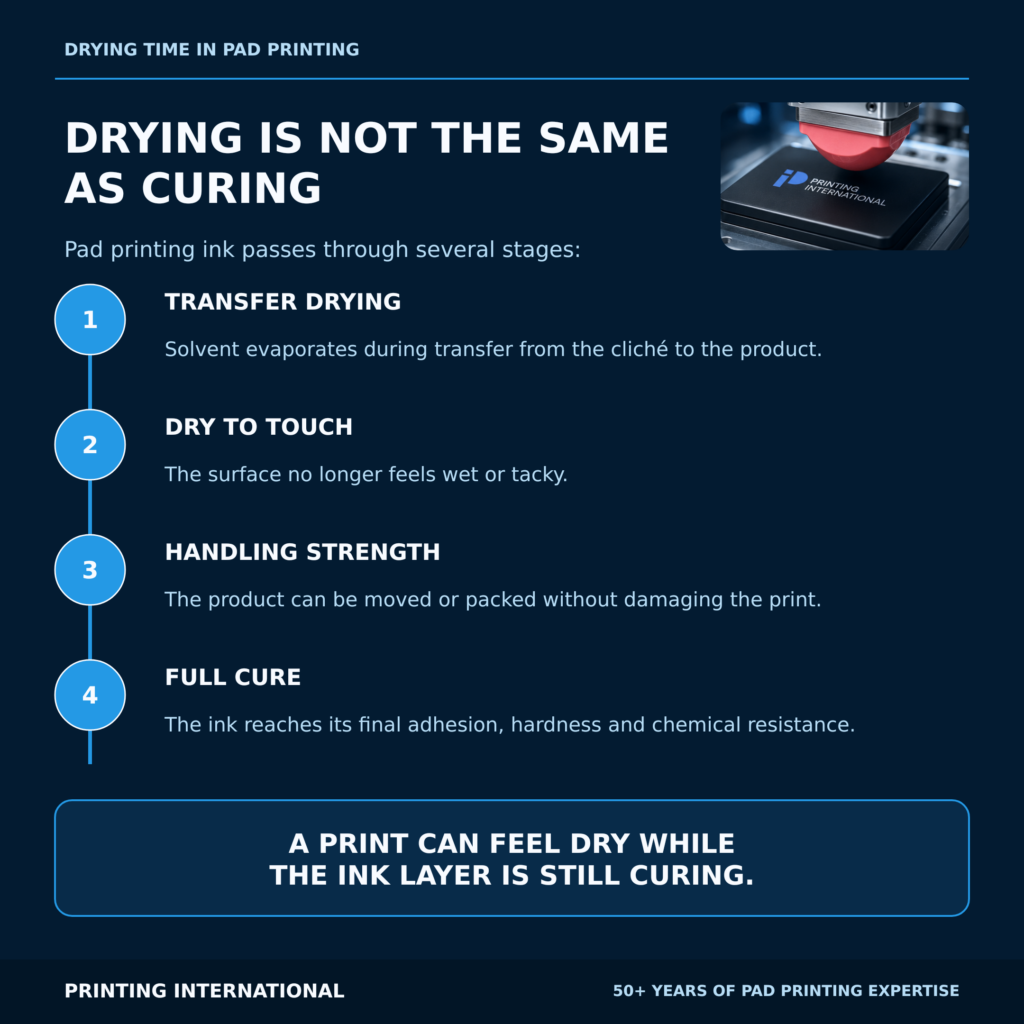

Drying is not the same as curing.

In pad printing, drying and curing take place in several stages:

1. Transfer drying
   Solvent evaporates while the ink transfers from the cliché to the printing pad and then to the product. This controlled evaporation helps the ink release correctly and retain a sharp image.
2. Dry to touch
   The surface no longer feels wet or tacky, and the ink does not smear under very light contact. However, the ink layer may still be curing underneath.
3. Handling strength
   The printed product can be moved, assembled or packed without damaging the print. The time required depends on the ink system, substrate and production conditions.
4. Full cure
   The ink reaches its final level of adhesion, hardness, mechanical resistance and chemical resistance. Depending on the ink, substrate and curing conditions, this can take several days and, for some systems, up to 14 days.

⭐ What influences drying and curing?

The required time depends on several factors:

• Ink series and solvent blend
  • One-component or two-component ink system
  • Type and ratio of hardener
  • Substrate material and surface condition
  • Pre-treatment method
  • Ink-layer thickness
  • Temperature, humidity and airflow
  • Forced-air or oven drying
  • Chemical interaction between the ink and substrate

The pot life of a mixed two-component ink should not be confused with its curing time on the printed product. Pot life indicates how long the prepared ink remains usable. Curing time describes how long the printed ink layer needs to develop its final properties.

🧪 How can you evaluate the print?

Different tests provide information about different stages of drying and curing:

1. Finger rub test
   Lightly rub the printed area. If the ink smears or leaves residue, the surface is not ready for handling. This test only indicates surface dryness.
2. Tape test
   Apply suitable adhesive tape to the print, press it firmly and remove it in a controlled motion. Ink transfer or print detachment may indicate insufficient adhesion, incomplete curing or inadequate surface preparation.
3. Scratch test
   Apply controlled pressure with a fingernail or an appropriate plastic tool. This provides an initial indication of the ink layer’s mechanical resistance.
4. Solvent resistance test
   Wipe the print with a cloth dampened with the specified test solvent. The solvent, pressure, number of rubs and waiting time must follow a defined procedure. This test helps evaluate the development of chemical resistance.

Testing too early can produce misleading results. Always perform final adhesion and resistance tests after the curing period specified in the ink’s technical data sheet and under consistent test conditions.

A print can feel dry while the ink layer is still curing.

At Printing International, we draw on more than 50 years of pad printing experience to help customers select the correct ink system, define suitable drying conditions and validate print performance for their specific product and application.

Do you need help improving adhesion, durability or curing performance? Our experts are ready to analyse your printing process.
